BPD96028

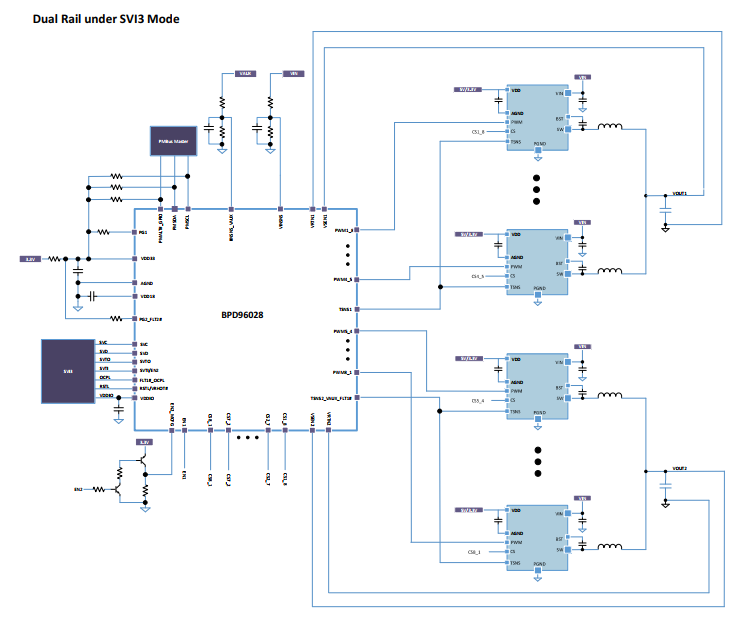

The BPD96028 is an up to 8 Phase multi-phaseBuck digital controller, and can support up toX+(8-X) for dual rail application. lt provides avery compact solution with minimized externalcomponents for high current level core powersupply. The part supports l2c and PMBUS Rev 1.3 foroutput control and SVl3 interface for AMD CPUand GPU processors.

Up to 8 Phase Dual Rail MultiphaseController

PMBUS Rev 1.3 compliant

SVl3 compliant

Built-in NVM Configuration

Pin Programmable MCFG Function foreasy register code management

Fs 250k up to 2Meg Hz

External Phase Number Setting

Interleaving+/TLVR/Couple inductor

• Graphics Card
• Server
• Telecom
