BPD92032

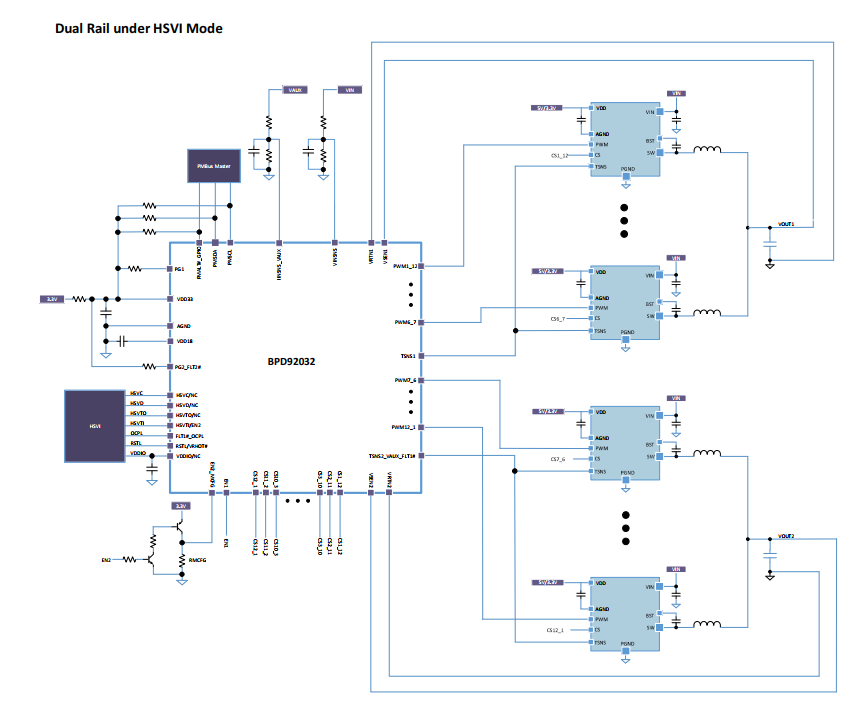

The BPD92032 is an up to 12 phase multi-phasebuck digital controller, and can support up toX+(12-X) for dual rail application. lt provides avery compact solution with minimized externalcomponents for high current level core powersupply. The part supports l2c and PMBUs Rev 1.3 withHSVl interface for output control and telemetry. The CFV³M (Constant Frequency Voltage CubeModulation) auto loop compensation eases thesystem stability and provides fast transientresponse with smaller passive components.

Up to 12 Phase Dual Rail Multiphase Controller

PMBUS Rev 1.3 Compliant

HSVl compliant

Built-in NVM Configuration

Pin Programmable MCFG Function foreasy register code management

Fs 250k up to 2Meg Hz

External Phase Number Setting

• Graphics Card
• Server
• Telecom
