BPD96058

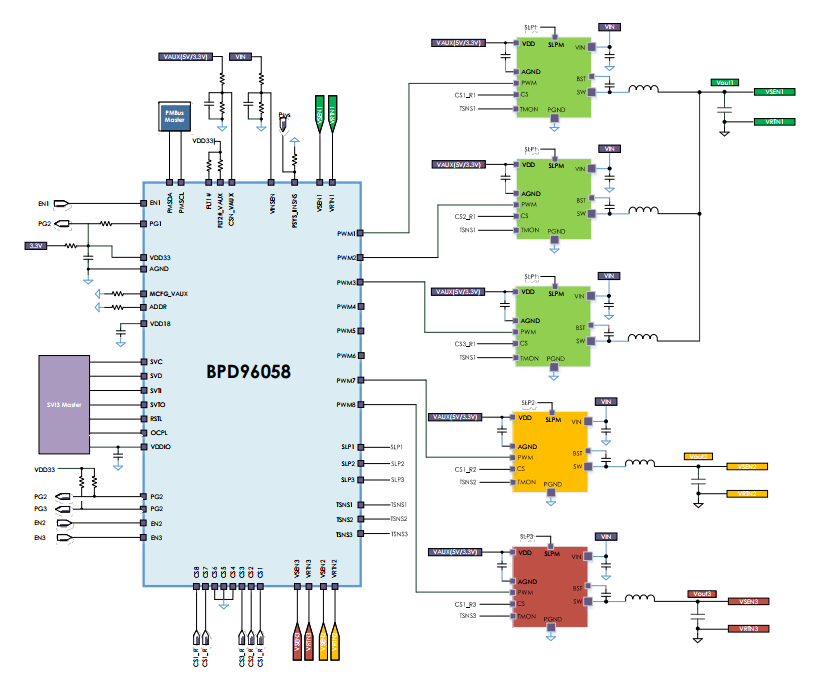

The BPD96058 is an up to 8 phase 3 rail Buck digitacontroller and can support multi rail application withdifferent configurations. lt provides a very compactsolution with minimized external components forhigh current level core power supply. The part supports l2C and PMBUs Rev 1.3 for outputcontrol and SVl3 interface for AMD CPU and GPUprocessors. The part is designed to be compatible with DrMOspower stage solution for compact and high efficiencypower stage design.

Up to 8 Phase 3 Rail Multiphase Controller

PMBUS Rev 1.3 Interface

SVl3 Rev2.0 Interface

Rail3 SVl3 Type 2 Supporting

Built in NVM Configuration

Power Stage SLP Mode

Pin Programmable MCFG and ADDR

Fs 250k up to 2Meg Hz

• Graphics Card
• Server
• Telecom
