BPD80750E

The BPD80750Epower stage fully:smartintegrates high speeddrivers and lowresistance half-bridge power switches. lt offerscomprehensive current in an electrically andthermally optimized package. With a suitablehigh frequency control unit, this power stageforms a compact, high current voltageregulator system with prominent efficiencyand transient response, excellently cateringthe needs of high current, high power densityapplications.

Input Voltage: 4.5V to 24V

50A Current Capability

High Frequency Operation (up to 1.5MHz)

3.3V/5V Compatible Tri-State PwM Input

Zero-Crossing Detection (ZCD) Control

Integrated Current Monitor

Integrated Thermal Warning Indication

Over-Current Protection (OCP)

Over-Temperature Protection (OTP)

• High-frequency,high-current and low-profile DC/DC converters

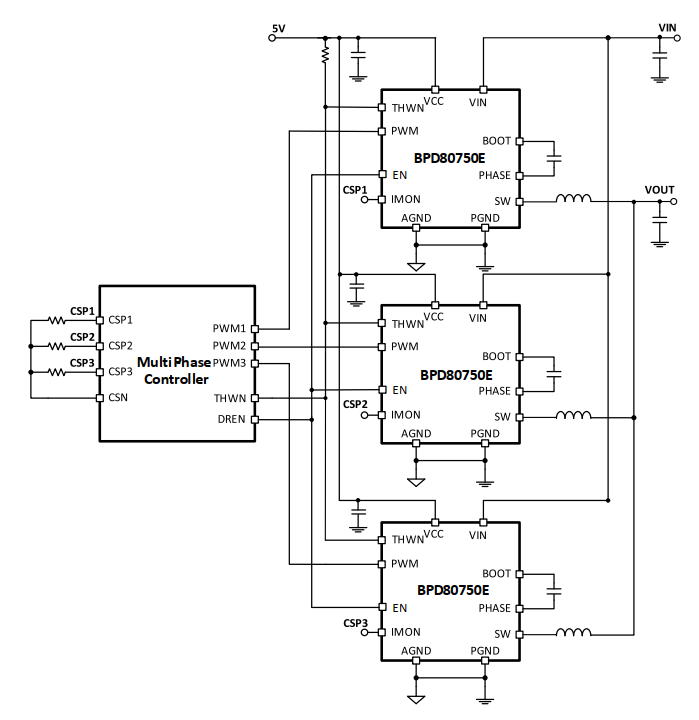

• Multiphase Voltage Regulators for CPUs,GPUs and Memory Arrays

•
